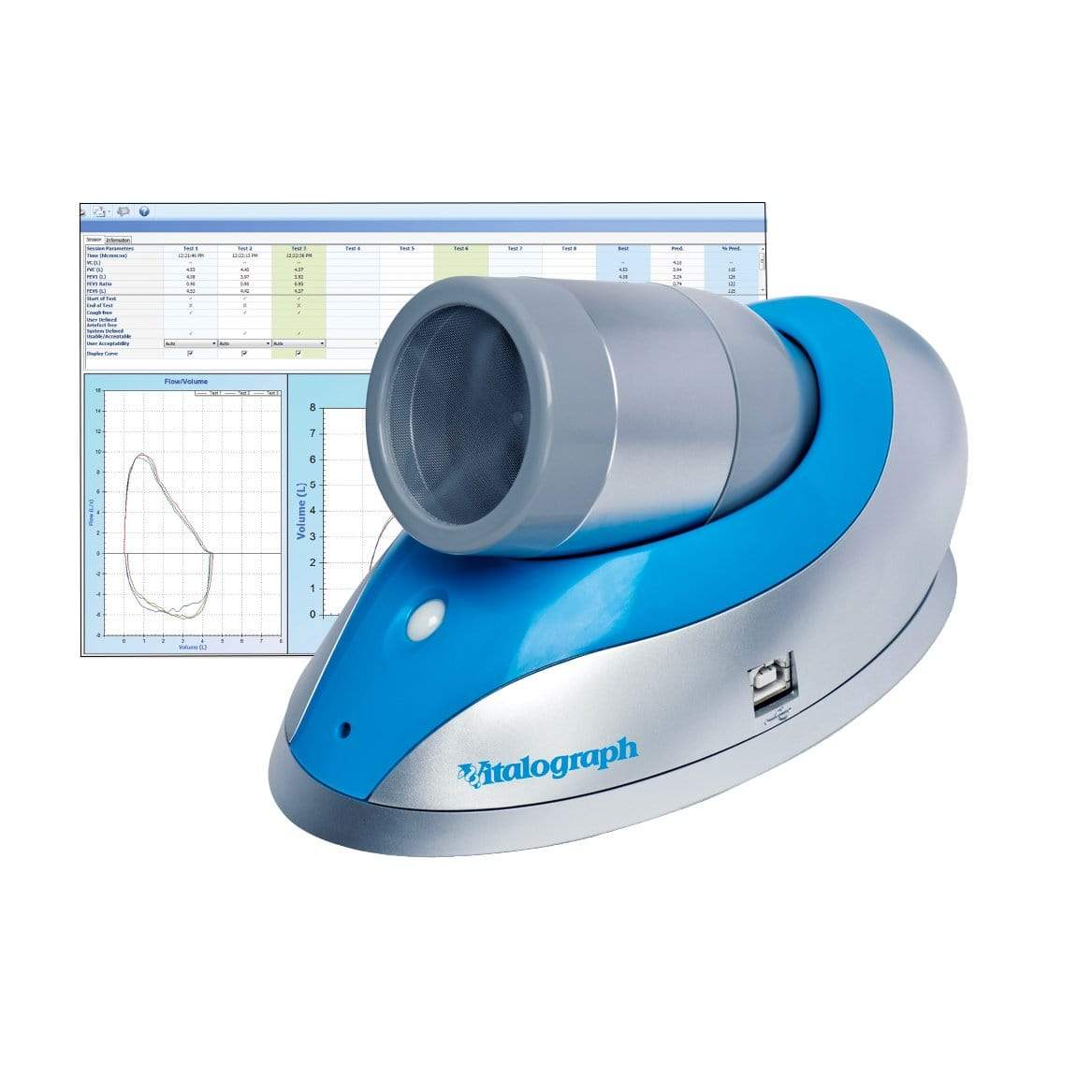

Vitalograph Pneumotrac With Spirotrac

Pneumotrac Spirometer

The Ideal PC-Based Spirometer for General Healthcare and Occupational Health

The Vitalograph Pneumotrac™ PC-based Spirometer is ideal for adult and paediatric use within general healthcare and occupational health settings. The Vitalograph Pneumotrac is supplied complete with attractive hardware and software and connects directly to your laptop or PC.

The precise and durable measurement technology is extremely accurate and stable over time, assured through our simple calibration check routines as recommended by international spirometry guidelines (ARTP, ATS/ERS, etc.) and good practice. No need for expensive disposable sensors, turbine, spirettes nor flow tubes with optimal hygiene assured via Vitalograph Bacterial Viral Filters (BVF™).

Sophisticated and intuitive Vitalograph Spirotrac® Software provides the perfect environment for data collection, storage and trending analysis and includes the latest GLI predicted equations and Z-scores.

Integrated HL7 and GDT communication interfaces provide the platform for test data exchange with all common electronic medical record (EMR) systems.

Including:

  • EMIS*
  • Vision*
  • Cohort
  • Medgate
  • SystmOne*
  • Clinic-All
  • eOPAS
  • Sophisticated PC-based spirometer
  • Attractive, compact design
  • Suitable for adults and paediatrics
  • Durable measurement technology
  • No need for expensive disposable sensors, turbines, spirettes or flow tubes
  • No user calibration required*
  • Optimal hygiene via Vitalograph Bacterial Viral Filters (BVF)
  • Powerful Spirotrac Software with real-time curves, interpretation and data trending
  • Choice of child friendly incentive animations to help improve patient cooperation
  • Intuitive Spirotrac Software future-proofs your service through various PC expansion options including interfacing with your network and electronic medical record (EMR) systems
  • Features latest GLI spirometry predicted equations and Z-scores
Product Vitalograph Pneumotrac
Model Number 6800
PC Operating System Networked or Stand Alone
Windows 7, 8, 8.1, 10
Size 103mm x 185mm
Weight 0.45Kg
Parameters Selectable
Operating Temperature Range 17 - 37°C
Design Limits 10-40°C
Power Supply From USB port
Flow Detection Principle Fleisch type pneumotachograph
Volume Detection Flow integration sampling @ 100Hz
Accuracy when in Operating Range Volumes: Better than +/- 3%
(Max 8L / Min 0L)
Flows: Better than +/- 5%
(Max 16L/s / Min 0.02L/s)
Linearity: +/- 1% in range 0.1 L/s to 16 L/s
Max Test Duration 45 seconds
Performance Standards ATS/ERS 2019
EN ISO 23747:2015
Safety Standards IEC 60601-1:2006 + A1:2013
Medical Safety Standard Medical Devices Directive 93/42/EEC
Designed & Manufactured Under ISO 13485:2003 and 2016
FDA 21 CFR 820
CMDR
